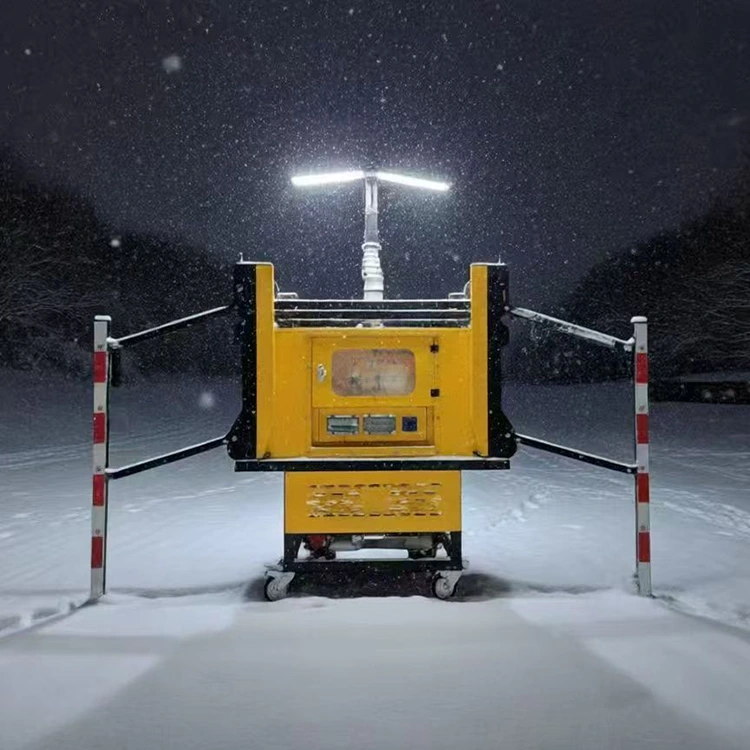

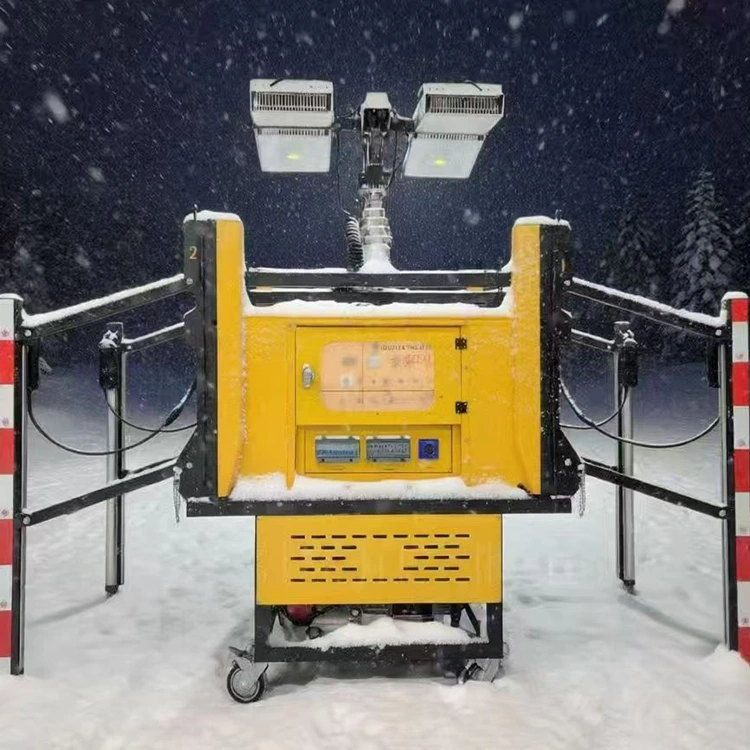

Automatic Loading and Unloading Mobile Lighting Tower

The Automatic Loading and Unloading Mobile Lighting Tower features an integrated automated loading and unloading structure, eliminating the need for cranes, forklifts, or other auxiliary machinery. It can quickly land, unfold, fold, and store itself using only its own structure. Its convenient transportation and efficient on-site deployment significantly reduce manpower and preparation time.

Key Advantages

Fast Self-Loading and Deployment

Built-in automatic loading and unloading system

No external lifting equipment required

One-person operation for transport and setup

Deployment time ≤ 180 seconds

High-Performance 360° Lighting

4×1000W LED high-brightness lamps

360° adjustable lighting coverage

Illumination range up to 120 meters

Luminous flux ≥ 380,000 lm

Stable, glare-reduced light for night operations

Strong Outdoor Adaptability

IP67 waterproof lamp heads

Wind resistance up to Level 8

Dustproof and corrosion-resistant structure

Works in rain, snow, sand, and extreme temperatures

Long Runtime and Flexible Power

Honda 4-stroke generator (5–5.5kW)

Continuous working time up to 25 hours

Dual power mode: generator or 220V mains supply

Smart Operation System

LCD control panel + wireless remote control (≥120m)

Adjustable mast height up to 7.3m

Fast lifting: ≤50s up / ≤35s down

Safe and simple operation interface

Technical Parameters

1. Rated Voltage: AC 220V, 50Hz

2. Lamp Head Power: 4×1000W LED light source

3. Illuminance: When the lamp head is at 90° to the ground,

the illuminance shall be more than 6000 Lx at 20 meters from the light center,

more than 1000 Lx at 50 meters,

and more than 200 Lx at 120 meters.

4. Generator Power: 5～5.5kW

5. Lifting Mode of Lighting Tower: Pneumatic

6. Maximum Lifting Height: 7.3m

7. Lamp Head Protection Class: IP67

8. Starting Mode: Manual start + Electric start

9. Continuous Working Time: 25 hours

10. Lifting Time: Rising ≤ 50s / Lowering ≤ 35s

11. Lamp Head Adjustment Range: Vertical 0–135° / Horizontal 0–360°

12. Generator Set: Honda, 4-stroke, air-cooled

13. Displacement: 389CC

14. Fuel Consumption: 1.7L/h; Fuel Tank Capacity: 45L

15. Generator Output Voltage: AC 220V, 50Hz

16. Total Weight: 600KG

7. Overall Dimensions:

Deployed: ≤ 2500×1500×7300mm

Stored: ≤ 1800×1400×2500mm

18. Guardrail Light Power: 2×28W

19. Tower Loading and Unloading Time: ≤ 180s

20. Lighting Coverage Radius: 120m

21. The switch of lamp heads and the lifting of the pole can be controlled via LCD display and wireless remote control; remote control distance ＞ 120m.

Performance Features

1. The main housing of the Automatic Loading and Unloading Mobile Lighting Tower is equipped with a locking structure and finished with powder coating to protect all internal components. The intelligent engine management module provides comprehensive monitoring and effective protection for the engine, facilitating daily maintenance. Four vertically foldable moving casters are installed at the bottom for flexible mobility.

2. The main lighting adopts 4×1000W LED light sources, delivering high brightness and a wide coverage range with balanced long‑distance and short‑distance illumination. The light source service life exceeds 10,000 hours, making it highly suitable for large‑scale outdoor operation lighting.

3. The tower is fitted with a pneumatic lifting mast made of 6063 aluminum alloy with hard anodized surface treatment for excellent corrosion resistance, with a maximum lifting height of 7.3 meters. The four lamp heads support electric vertical flipping from 0° to 135° and 360° horizontal angle adjustment, achieving full‑site coverage with a lighting radius of no less than 120 meters.

4. Powered by a generator set, the unit can operate continuously for 25 hours on a full fuel tank. It can also be connected to a 220V AC mains power supply for long‑term lighting where municipal electricity is available.

5. Equipped with an integrated visual operation panel and manual control switches, the device features simple, safe and reliable operation.

6. With a compact overall structure and stable performance, the tower is equipped with four reverse electric push rod support legs, enabling the main unit to be integrally lifted by more than 1000 mm. It provides stable and balanced support on uneven construction sites, operates normally under harsh environments and weather conditions, and reaches Level 8 wind resistance.

7. The optimized structural design ensures easy movement and transportation. It supports electric self‑loading and unloading onto pickup truck cargo beds, reflecting a humanized design concept.

8. Total luminous flux of lamp heads: ≥380,000 lm; Noise level: under normal operation, the operating noise measured at 7 meters around the engine is no more than 62 dB.

9. A set of 2×28W guardrail lights are installed around the main unit, featuring excellent waterproof and dustproof performance.

Scope of Application

This Automatic Loading and Unloading Mobile Lighting Tower is suitable for a wide range of scenarios and meets the demand for large-area, high-brightness lighting in multiple fields. It is applicable to various large-scale construction operations, mining operations, field exploration and factory expansion projects, providing sufficient illumination for wide-range work at night or in low-light conditions to ensure construction efficiency and operational safety.

Meanwhile, it serves as an essential lighting device for emergency rescue missions. It is widely used in the maintenance and emergency repair of power, communication and road facilities, on-site handling of sudden accidents, flood prevention and flood fighting, as well as disaster rescue and relief. It delivers stable large-area emergency lighting to support emergency teams in carrying out rescue work and handling hazards efficiently.
