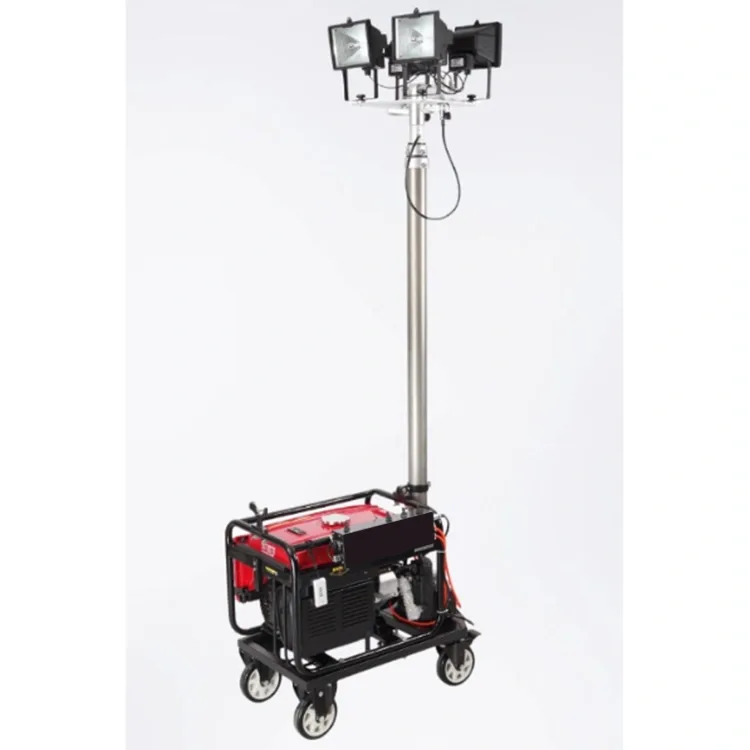

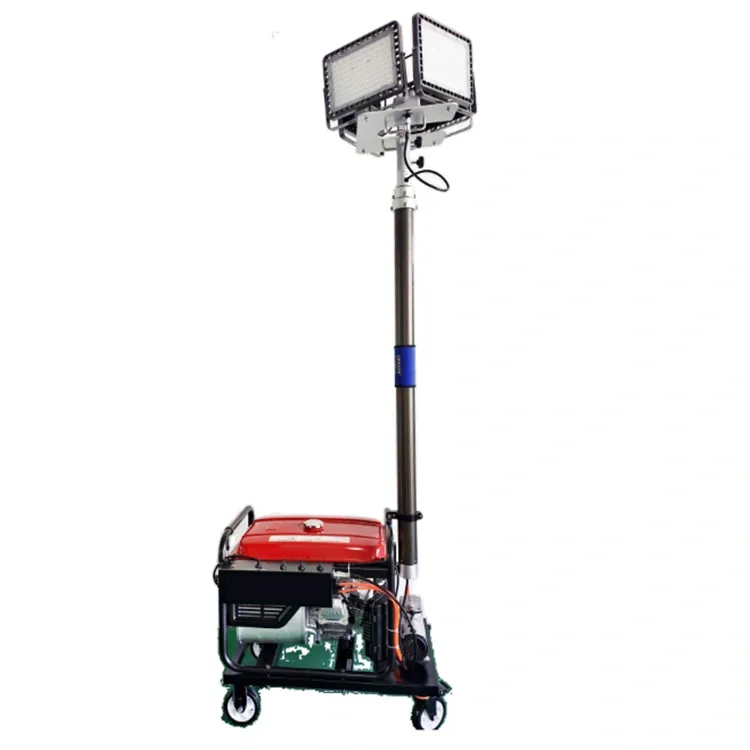

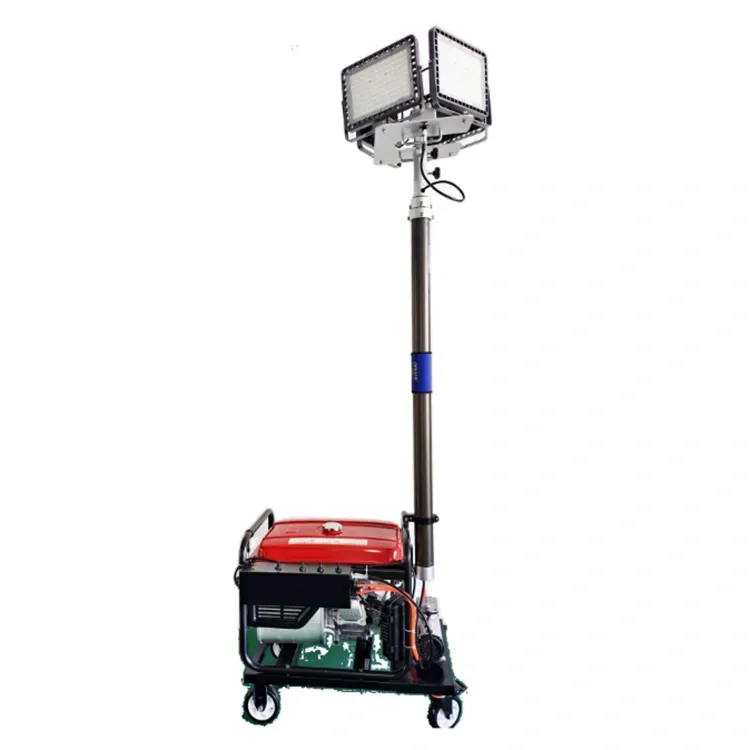

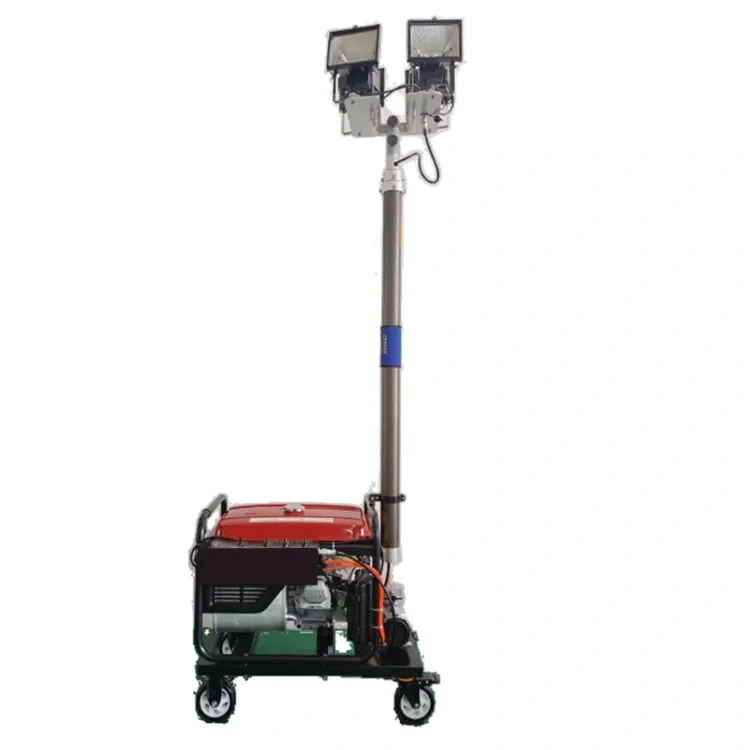

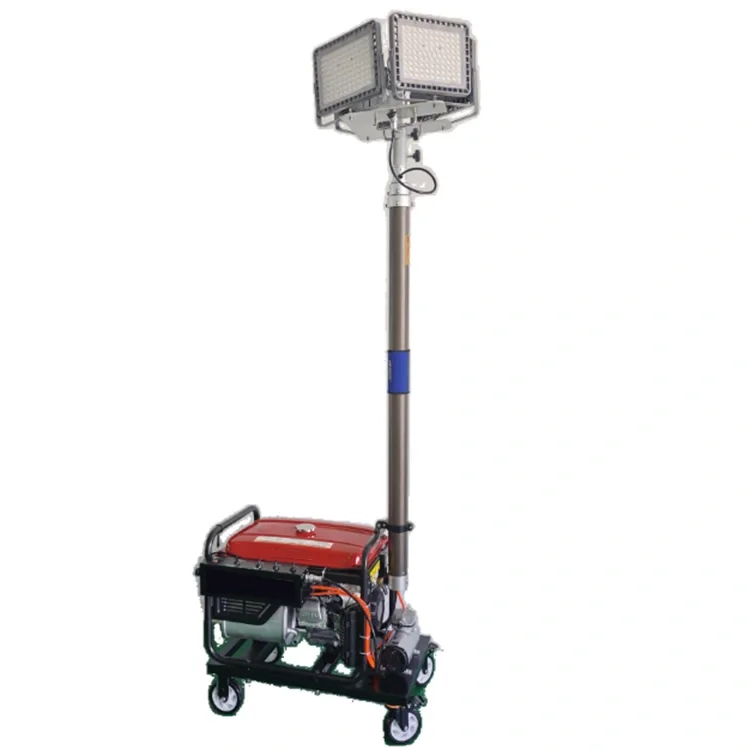

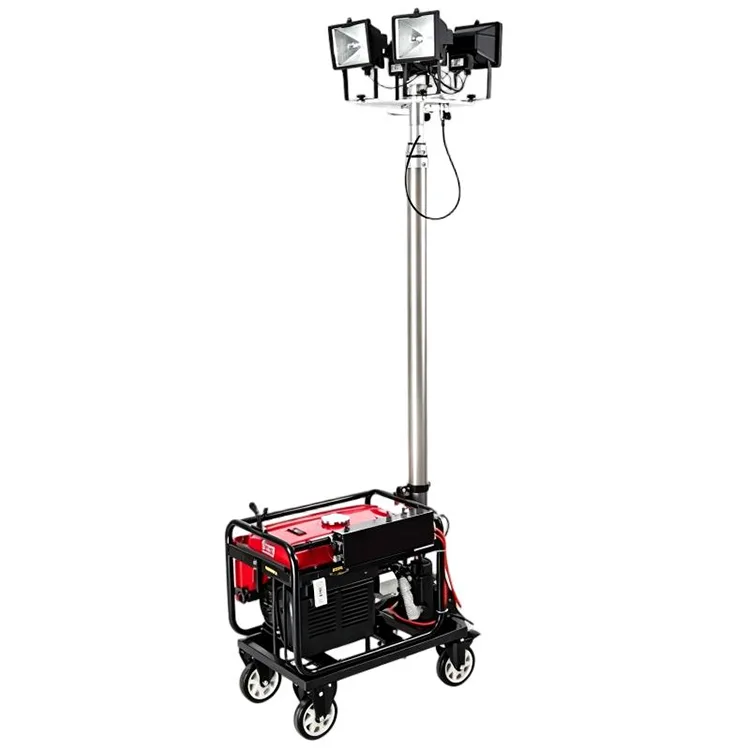

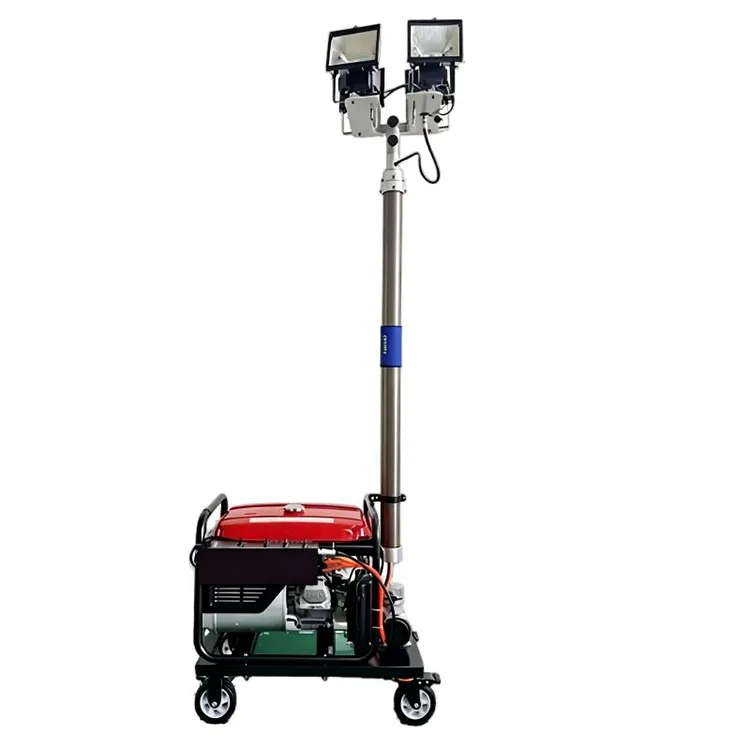

Omnidirectional Automatic Floodlight Work Light

Changshu Jianghe Flood Prevention Products CO., Ltd. specializes in the R&D and supply of flood control supplies and various emergency safety equipment, and has developed the omnidirectional automatic floodlight work light. Equipped with flexibly adjustable lamp assemblies, the product delivers wide-range full-area flood illumination, with automatic lifting and multi-angle lighting adjustment. It is quick to deploy and easy to transport.

Featuring a sturdy and durable structure with excellent protection performance, the  omnidirectional automatic floodlight work light adapts to harsh outdoor conditions such as rain, snow and high humidity. It is widely applied in flood rescue, fire emergency services, road maintenance, factory operations and all kinds of field emergency scenarios, providing stable and uniform omnidirectional lighting for large-scale night work and emergency response.

Structural Features

1. It consists of a lamp panel, lamp heads, generator, pneumatic lifting pole, travelling chassis and wireless remote controller.

2. Equipped with four high-efficiency and energy-saving 500W Philips lamp heads. Each lamp head can be independently adjusted and rotated at a wide angle up, down, left and right as required on site to achieve 360° omnidirectional lighting. The lamp heads can also be evenly arranged on the lamp panel to illuminate in four different directions. If all four lamp heads need to face the same direction, the entire lamp panel can be flipped within 250° toward the opening direction and rotated 360° left and right around the cylinder axis. It delivers both long and short-distance lighting with high brightness and a wide coverage range.

3. Adopting a 3-section telescopic cylinder for height adjustment, with a maximum lifting height of 4.5 meters. The beam angle can be adjusted by rotating the lamp heads vertically, with a lighting coverage radius of 45 to 65 meters and a lifting time of only 20 seconds.

4. It can be directly powered by the generator set or connected to 220V mains power for long-duration lighting. When powered by the generator, it can work continuously for up to 13 hours with a full fuel tank.

5. The on and off of each lamp can be controlled separately within a 50-meter range via wireless remote control. Electric or manual air pumps can quickly drive the expansion and lifting of the pneumatic pole.

6. The lamp panel, cylinder and generator set are integrated into one unit. Universal wheels are installed at the bottom of the generator, enabling flexible movement on rough roads and railway tracks.

7. The whole device is made of high-quality imported metal materials, featuring a compact structure and stable performance. It ensures normal operation under various harsh environments and climatic conditions, with functions of rain and water splash resistance, and an 8-level wind resistance rating.

8. To meet personalized user demands, if the standard configuration fails to meet on-site operation needs, our company can customize the number and power of lamp heads on the panel, floodlight or spotlight mode, the lifting height of the telescopic cylinder, and generator configuration according to customer requirements.

Technical Parameters

Operating Voltage: AC 220V / 50Hz

Lamp Head Power (LED): 4×100W / 8×50W

Luminous Flux per Lamp Head: 4×10000lm

Average LED Service Life: 100,000h

Continuous Working Time: Long-term operation with mains power supply; up to 13 hours on a full tank of fuel

Generator Output Power: 2000W

Fuel Tank Capacity: 15L

Operating Noise: ≤85dB

Telescopic Cylinder: Lifting time ≤60s / Maximum extended height 4.5m

Overall Dimensions:

Telescopic pole: 1520×500×800mm

Lamp panel: 400×390×270mm

Generator set: 430×710×650mm

Total Weight: ≤85kg

Enclosure Protection Class: IP65

Applicable Places

This Omnidirectional Automatic Floodlight Work Light features a wide range of application scenarios and is widely suitable for public security, fire protection, railway, electric power, petroleum, petrochemical and other key industries. It perfectly meets the demands for large-area and high-brightness on-site lighting in large-scale construction operations, emergency accident repairs, disaster rescue and relief, as well as various sudden emergency tasks and daily field operations, delivering stable and uniform strong illumination for complex working environments and ensuring safe and efficient on-site operation.
