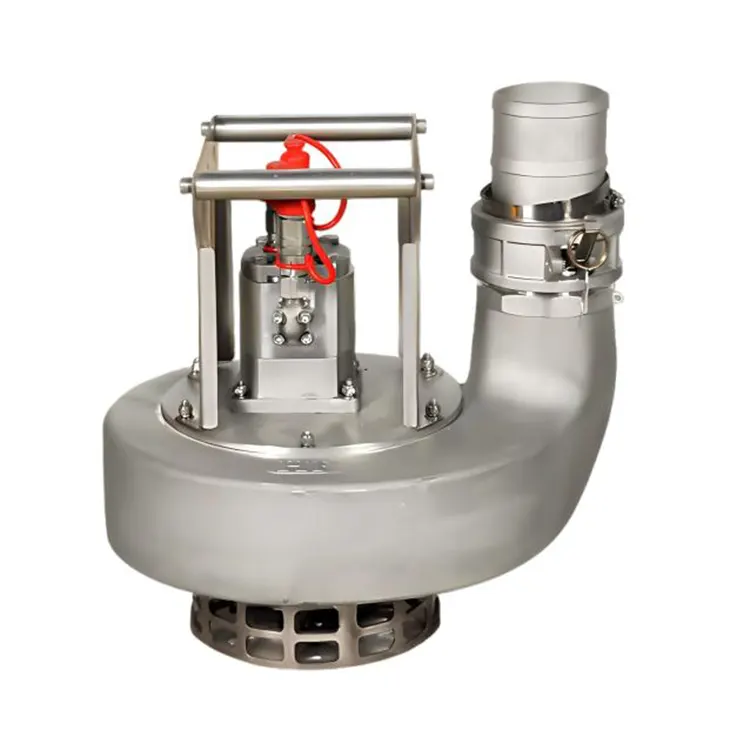

Hydraulic Slurry Pump

Jianghe Flood Prevention is a China-based ISO9001:2025 certified manufacturer, specializing in emergency waterlogging drainage and rescue equipment since 2013. Our core product — the hydraulic slag slurry pump — is CE-approved and designed for extreme sediment-laden conditions. We provide reliable Made-in-China solutions backed by factory-direct supply, 12-month warranty.

Our hydraulic slag slurry pump is powered by a SAE 2A standard hydraulic motor, providing instant start-stop and seamless linkage with excavators, skid steers, and power packs (flow range 27–40 Lpm). In field tests, it improves drainage efficiency by 40% compared to electric pumps in submerged conditions.

Real-world applications:

2024 Guangdong flood rescue: 15 pumps ran continuously for 72 hours, pumping 200m³/h of debris-laden water.

Vietnam river dredging project: operated in 30% sand content, zero clogging over 2 months.

Philippines stormwater drainage: replaced 3 electric pumps with 1 hydraulic unit, cutting fuel costs by 60%.

These field results make our hydraulic slurry pump a recognized choice among state flood control departments and global

Parameter Specification

Working Principle of Hydraulic Slurry Pump

Driving Mode

Adopted external hydraulic power drive, no external power supply required.

Working Principle

The hydraulic motor drives the impeller to rotate at high speed and create negative pressure to suck in mud, sediment and sewage. The medium is pressurized by centrifugal force for rapid discharge.

Product Advantages

Excellent large particle passing capacity, integral wear and corrosion resistance, stable operation and reliable performance. Supported by factory test reports available upon request.

Application Scope

Widely used in flood control drainage, river dredging, silt cleaning and other emergency drainage operations.

Why Choose Us?

As a reliable professional manufacturer in China, Jianghe Flood Prevention provides high-quality hydraulic slurry pumps with direct factory supply.

Our hydraulic slurry pump adopts premium wear-resistant alloy structure, featuring outstanding anti-clogging and anti-corrosion performance. It can smoothly convey slurry containing large solid particles without blockage.

Adopting hydraulic drive design, the pump requires no external power supply. It connects easily with various construction machinery, enabling flexible layout and rapid on-site deployment.

With stable running performance and low failure rate, we also offer personalized customized services to meet different project demands.

Jianghe Flood Prevention always delivers dependable Made-in-China products and complete after-sales support, serving flood control, river dredging and emergency drainage projects worldwide.

Packaging and Shipping

Q1: Can this hydraulic slurry pump work with my existing excavator or skid steer?

A: Yes. Our hydraulic slurry pump requires a hydraulic power source with flow range 27–40 Lpm and max pressure up to 255 bar.

It works seamlessly with:

3–8 ton excavators

Skid steer loaders

Dedicated hydraulic power packs

If your equipment's flow is outside this range, contact us for hydraulic motor customization.

Q2: What happens if the pump sucks in particles larger than 25mm in diameter? Will it clog?

A: Clogging is extremely rare. Our pumps are designed for harsh sandy/sedimentary conditions.

Maximum passable particles: 25mm in diameter. The open impeller design allows most oversized particles to pass through without easily getting stuck.

Any blockage can be cleared by instantly reversing the water flow.

Tool-free disassembly: No special tools are needed; the impeller can be accessed in less than 5 minutes.

Proven track record: In our river dredging project in Vietnam (30% sand content, continuous operation), no blockages occurred within two months.

Q3: Can you customize the pump for my specific project requirements?

A: Yes. As an ISO 9001:2025 certified manufacturer, we offer full customization.

Customization options:

Discharge diameter: 100mm (standard), 150mm, or 200mm

Hydraulic motor interface: SAE 2A (standard), SAE 3A, or custom flanges

Wear-resistant material: Standard alloy or high-chrome cast iron

Suction strainer: Optional for cleaner water applications

CAD drawing service: 2D drawing provided for approval
