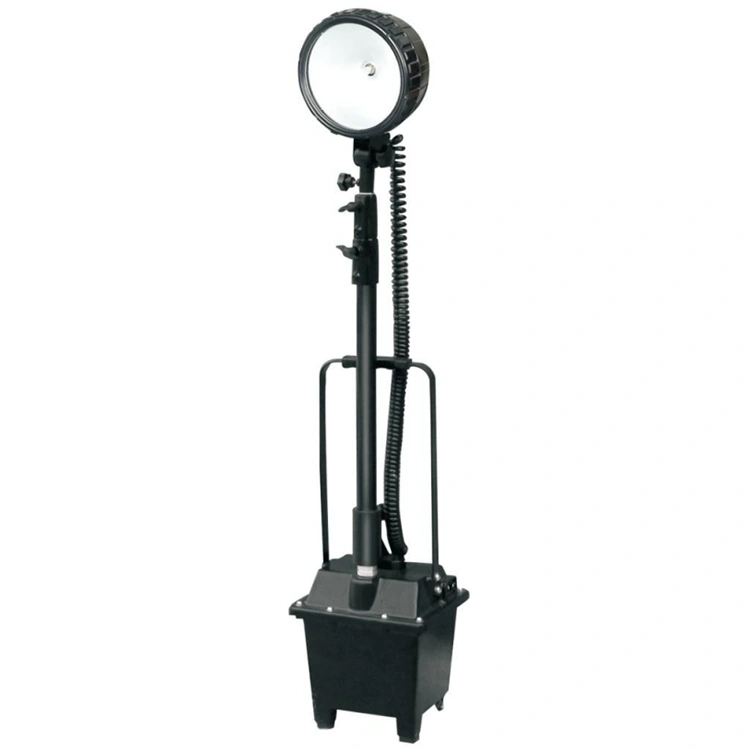

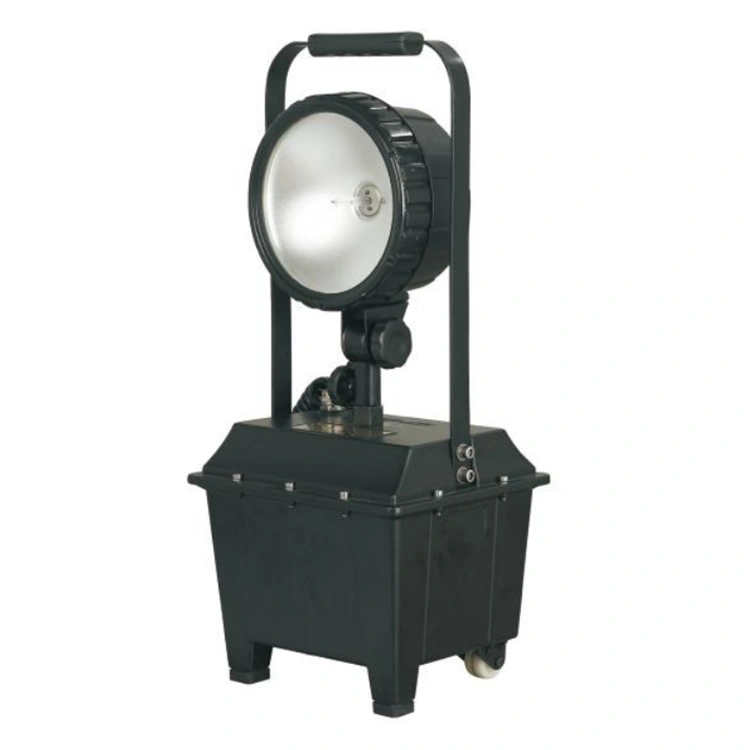

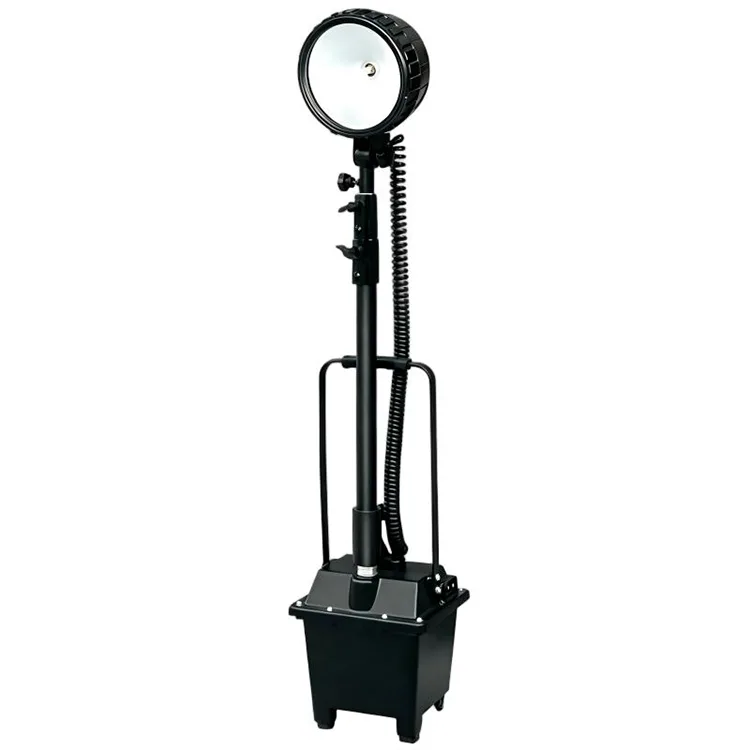

Explosion-Proof Floodlight Work Light

Our explosion-proof floodlight work light is a mobile lighting solution tailor-made for flammable and explosive hazardous areas in industries such as petroleum, petrochemical, marine, electric power, metallurgy and mining. Integrating intrinsic safety, high-efficiency lighting and convenient practicality, it delivers reliable lighting support for large-area mobile illumination, emergency maintenance and outdoor construction in various high-risk scenarios.

As a dependable safety light for hazardous environments, this explosion-proof floodlight work light fully complies with GB3836 and other explosion-proof standards. Adopting an explosion-proof structural design, it fundamentally eliminates potential safety hazards caused by electric sparks and high temperatures, ensuring stable and safe operation in environments filled with flammable, explosive gas or dust, and enabling operators to work safely under complex on-site conditions.

Structural Features

1. This product has obtained explosion-proof certification issued by national authoritative institutions. With an explosion-proof grade of flameproof type and manufactured in full compliance with national explosion-proof standards, it delivers excellent explosion-proof performance and can operate safely in all flammable and explosive locations.

2. The flameproof lamp body adopts xenon lamp as the light source, supporting instant start and hot restart. It features high luminous efficiency with a luminous flux of no less than 3200LM, 5 times that of halogen lamps of the same power, and its illuminance is equivalent to five times that of 100W halogen lamps. The service life of the bulb reaches 10,000 hours, 10 times longer than ordinary halogen lamps. Its continuous working time exceeds 12 hours. Under the same brightness parameters, it reduces power consumption by 85% compared with halogen lamps, with low heat generation for higher safety and reliability.

3. The high-energy memory-free battery supports random charging. After a full charge, the battery capacity retention rate remains no less than 85% within half a year and no less than 55% within two years. Equipped with an over-discharge protection circuit, it effectively protects the battery and extends its service life.

4. The lamp head can be fixed on the lamp body or other supports for use, or easily removed for handheld operation. It can also be mounted on a pneumatic lifting bracket for height adjustment freely within the range of 1.2 to 3 meters. The bottom of the lamp body is fitted with universal moving wheels and rail wheels, enabling flexible and labor-free movement on flat ground and rails.

5. Adopting a fully sealed structural design, the light can work normally in heavy rain conditions. The specially made alloy shell is resistant to strong collision and impact damage.

Parameter Specifications

Rated Voltage: 24V

Rated Capacity: 20Ah

Special Bulb:

Rated Power: 35W

Luminous Flux: 3200lm

Average Service Life: 10000h

Continuous Discharge Time: 10h

Charging Time: 10 hours after normal use; 12 hours when fully depleted

Battery Cycle Life: Approximately 1000 cycles

Overall Dimension (L×W×H):

250×215×1510 mm (lowered);

250×215×3080 mm (raised)

Weight: ≤15kg

Applicable Places

This Explosion-Proof Floodlight Work Light is specially designed for professional scenarios requiring high-intensity mobile lighting. It is widely applied in emergency tasks such as fire rescue, emergency disaster relief and on-site accident maintenance, providing operators with clear and stable lighting support to facilitate rapid hazard disposal. Meanwhile, it is suitable for long-term outdoor operations including outdoor engineering construction, nighttime infrastructure work and road maintenance to meet demands for continuous lighting. In addition, with reliable performance, it delivers critical lighting in high-risk and complex environments such as underground mining operations, petrochemical inspections, power equipment maintenance and ship & port operations. It also applies to special scenarios like outdoor exploration, field search and rescue, as well as flood prevention and drought relief, fully meeting diversified needs for mobile lighting and emergency rescue.
