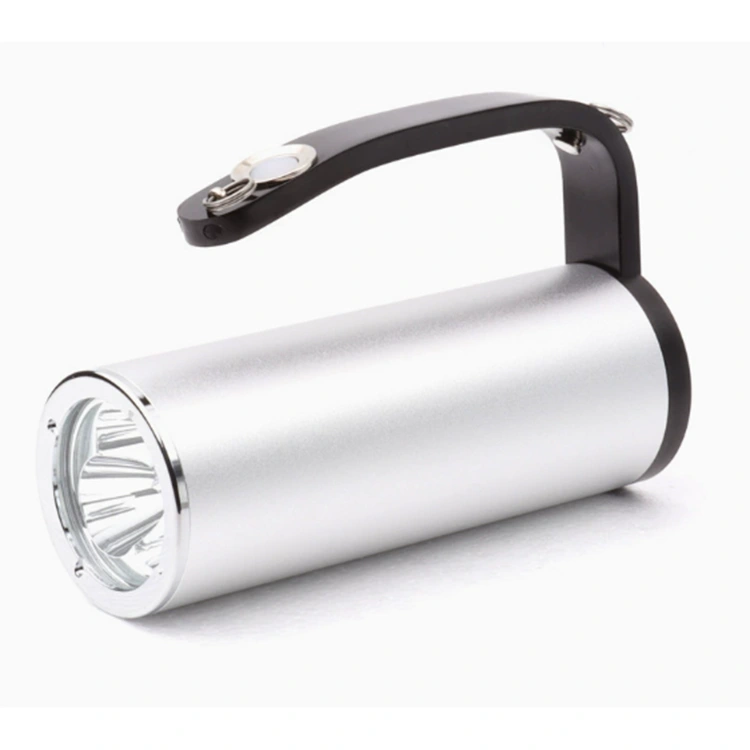

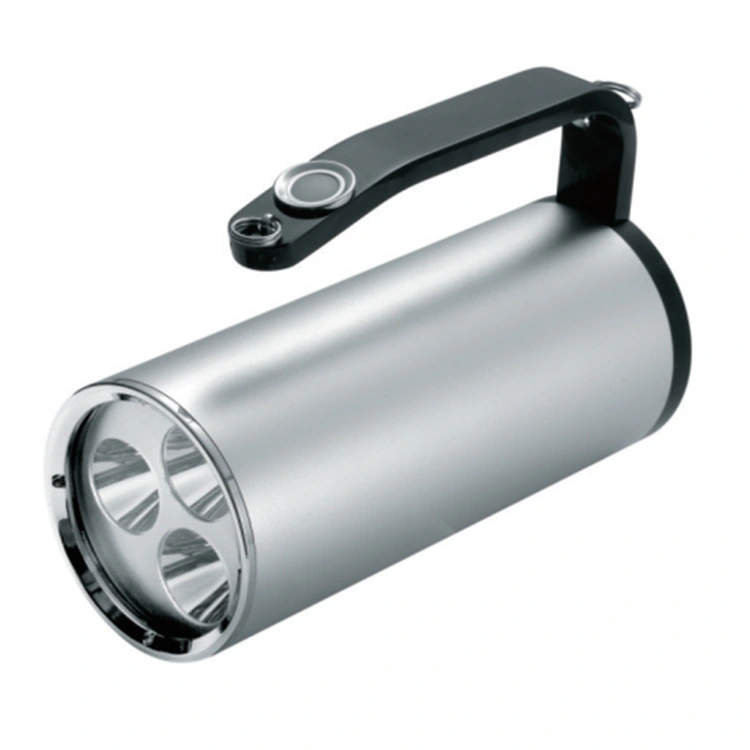

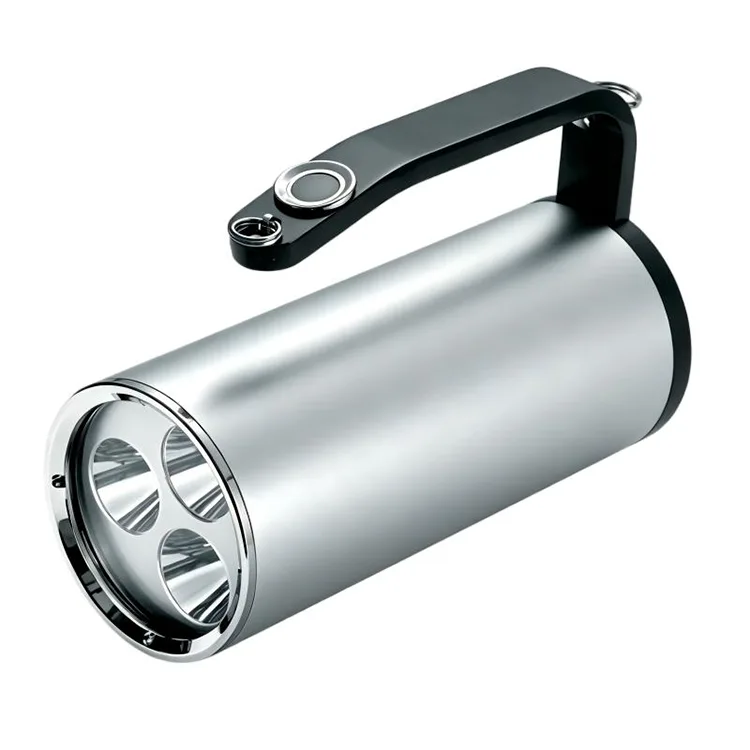

Handheld Explosion-Proof Searchlight

Jianghe Flood Prevention provides comprehensive supply and supporting services for flood control and emergency products. It is a professional enterprise integrating scientific research, manufacturing, product sales and technology promotion.

This handheld explosion-proof searchlight adopts industrial-grade explosion-proof design, suitable for flammable and explosive hazardous places such as chemical plants, oil fields, gas stations and mines. It is equipped with high-brightness LED light source, which delivers concentrated long-range illumination. This product supports three lighting modes with one-key switching, including strong light, weak light and flashing warning light, which can be adjusted freely to meet the lighting needs of inspection and maintenance, emergency rescue, night patrol and other scenarios.

It is built with a high-capacity lithium battery to ensure long-lasting and stable battery life, with built-in power indicator and intelligent low-power reminder.This searchlight boasts an IP68 dustproof and waterproof rating. Its high-strength alloy shell is drop-resistant, pressure-resistant, corrosion-resistant, and resistant to high and low temperatures, easily handling harsh working environments.

This product features a lightweight and portable design, allowing it to be carried by hand or over the shoulder. Its portability and ease of use make it an ideal choice for industrial explosion-proof emergency lighting.

Product Specifications

·  Rated Voltage: DC 11.1V

·  Rated Capacity: 4400mAh

·  Rated Power: 3×3W

·  Average Service Life of LED Light Source: ≥100,000h

·  Continuous Discharge Time: 8h (High Light) / 16h (Working Light) / 32h (Strobe)

·  Charging Time: 6h (Normal Use) / 8h (Battery Fully Drained)

·  Battery Cycle Life: ≥1000 cycles

·  Overall Dimension: 69×172(±3)mm (Diameter × Length)

·  Weight: 1±0.05kg

·  Enclosure Protection Grade: IP66/IP68

·  Explosion-proof Mark: Ex db ia ⅡC T6 Gb; Ex ia tb ⅢC T80℃ Db

Structural Features

1. Adopting flameproof explosion-proof grade, it can work safely in various flammable and explosive locations.

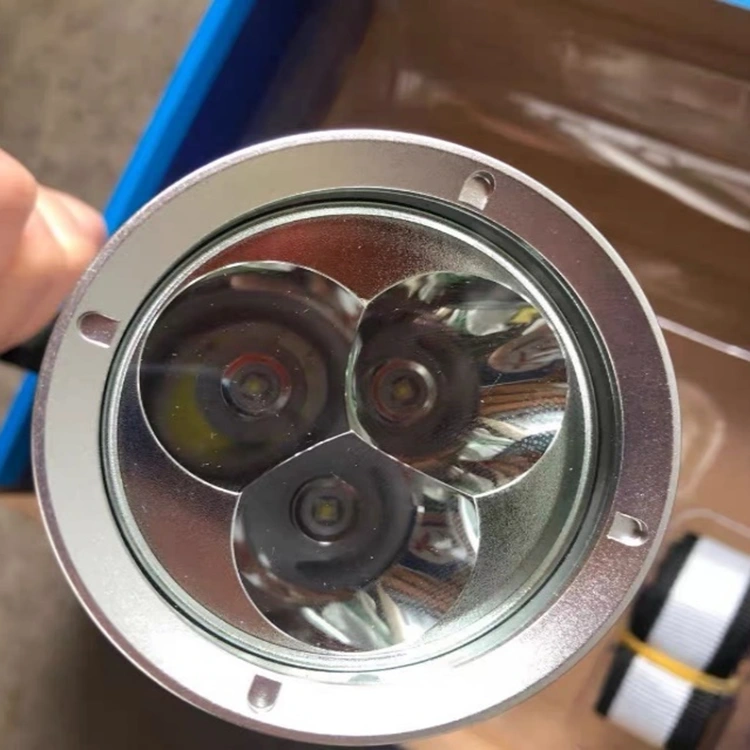

2. Equipped with three 3W imported solid-state maintenance-free LED light sources, featuring high luminous efficiency and excellent spotlight performance, with an average service life of up to 100,000 hours. It has three lighting modes: working light, high beam and strobe light, which can be switched freely by pressing the button.

3. Designed with humanized power display and low-voltage warning functions to check the battery level at any time; the lamp will automatically prompt for charging when the power is insufficient.

4. High-energy memory-free battery with large capacity, zero pollution, excellent charge and discharge performance and low self-discharge rate.

5. The housing is made of imported high-hardness alloy material, featuring outstanding resistance to strong collision and impact as well as superior sealing performance.

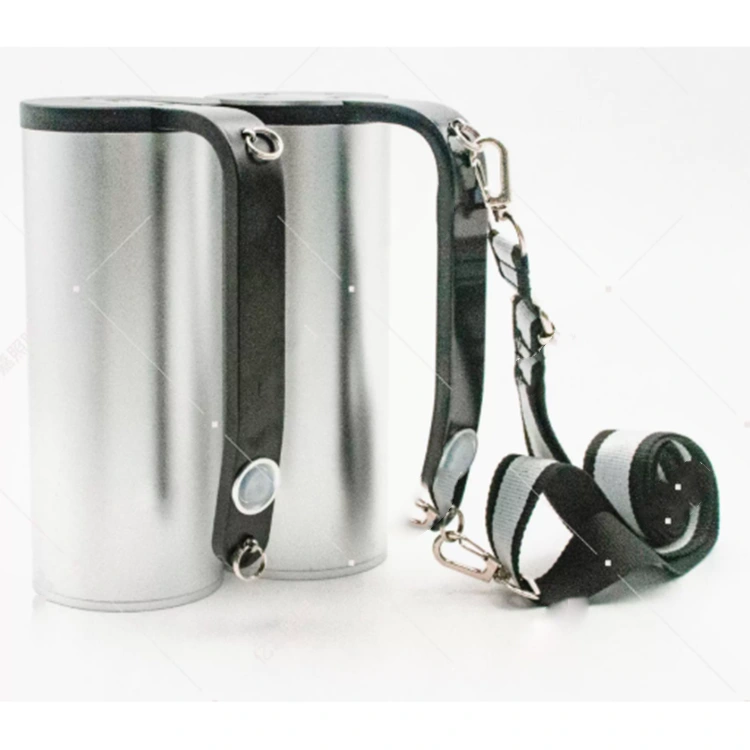

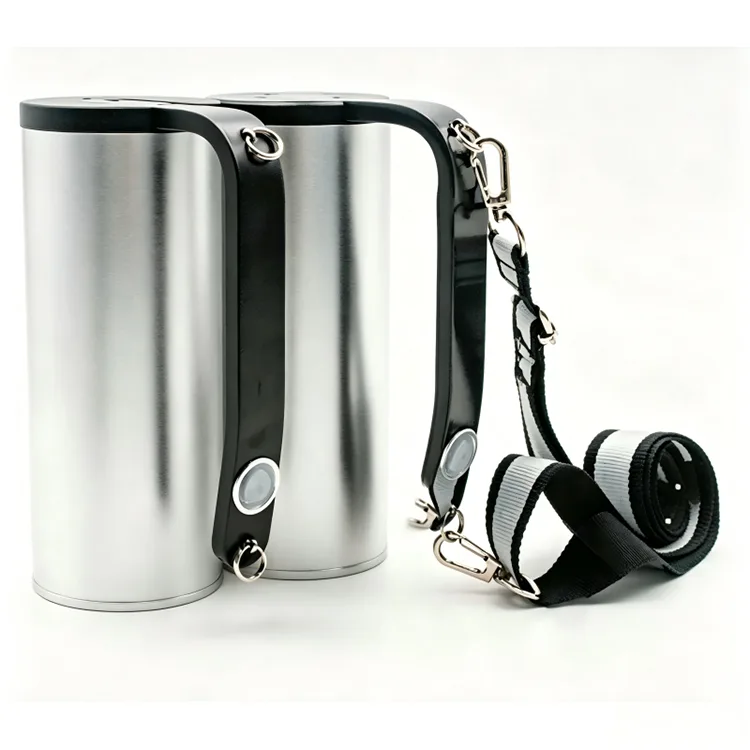

6. The Handheld Explosion-Proof Searchlight boasts a compact and stylish design, small size, and light weight. It supports multiple carrying methods, such as handheld and shoulder carrying, for convenient portability.

7. Two color temperature options of cool white and warm white are available to meet actual application demands. Customized production is acceptable according to customer requirements.

Special Details

● Red signal function added at the tail.

● Power indicator function equipped on the handle.

● The Handheld Explosion-Proof Searchlight features a tilt-sensing alarm. The microcontroller detects user movement 60 times per second. If no physical movement is detected within 30 seconds, the red LED at the rear of the light will flash rapidly.

● White silicone pad installed on the grip to enhance hand-held comfort.
