Explosion-Proof Panoramic Mobile Lighting System

Changshu Jianghe Flood Prevention Products CO., Ltd. has long been engaged in the emergency lighting sector. Its self-developed explosion-proof panoramic mobile lighting system features safe full-range lighting and flexible portable deployment, perfectly meeting the demands of high-risk operations in diverse scenarios. Adopting a composite explosion-proof structure, it reaches the explosion-proof grade of Ex db eb ib mb IIC T6 Gb. With an IP66 high-protection design, it withstands heavy rain, drops and other harsh working conditions, ensuring reliable and safe operation in flammable and explosive environments.

Widely applied in flood control and rescue, fire emergency services, public security duty and industrial maintenance, it delivers stable and efficient mobile lighting support for river dike inspections, construction in high-risk factories and on-site accident handling, effectively improving the safety and efficiency of frontline operations.

Technical Parameters

Rated Voltage: DC 22.2V

Rated Battery Capacity: 5×3Ah

Rated Power: 120W / 150W

Maximum Initial Illuminance at 10 Meters:

High light: 750lx / Medium light: 450lx / Working light: 300lx

Lighting Mode: Floodlight + Spotlight

Warning Light Color: Yellow

Duration of Combined Flood & Spotlight Lighting:

High light: 5h / Medium light: 10h / Working light: 14h

Battery Service Life: ≥ 1000 cycles

Charging Time: ≤ 6h

Overall Dimensions:

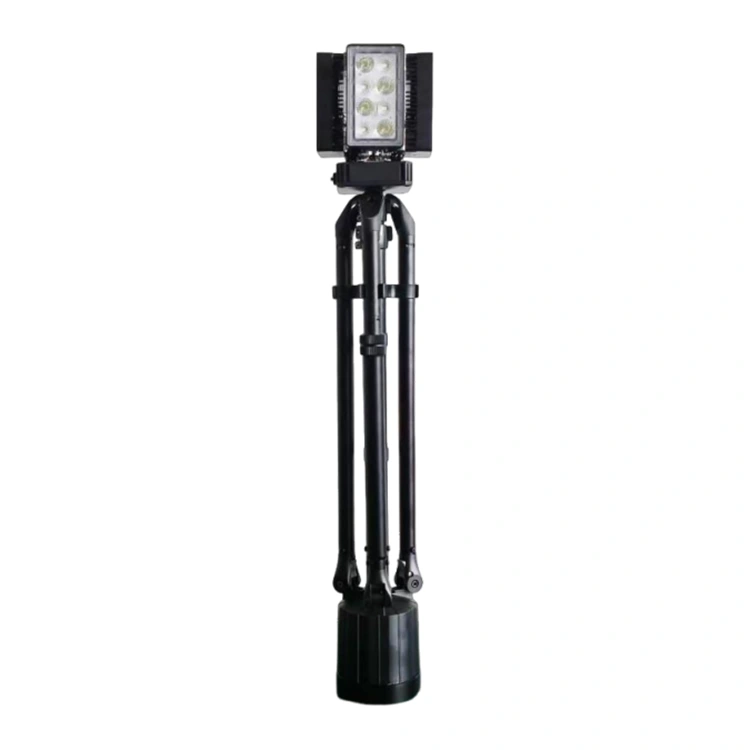

Lifting rod retracted: 201×872(±50) mm

Lifting rod extended: 820×2253(±50) mm

Weight: 8±0.5kg

Operating Temperature: -20℃ ~ 40℃

Product Features

1. The Explosion-Proof Panoramic Mobile Lighting System adopts a composite explosion‑proof structure combining intrinsic safety, encapsulation and increased safety. It can be safely used in Zone 1 and Zone 2 flammable and explosive gas environments. With an overall protection rating of IP66, it supports long‑term operation under harsh outdoor conditions.

2. The lamp head is equipped with high‑efficiency LED light sources, featuring energy saving, environmental friendliness, high brightness and long service life. The rated lighting power of 150W meets the wide‑area lighting demands of various construction sites.

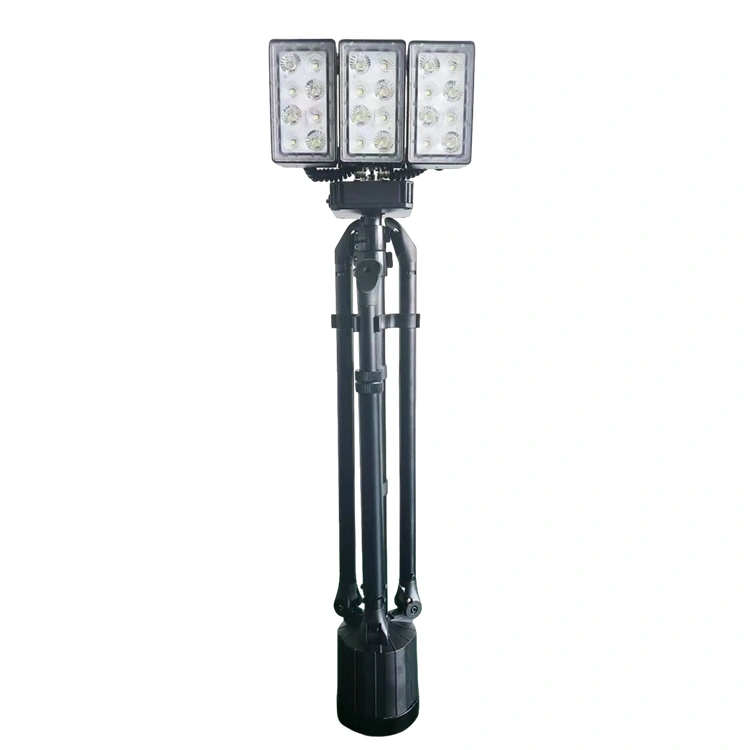

3. Designed with three lamp heads, the irradiation direction and angle can be adjusted horizontally and vertically to realize 360° omnidirectional surrounding lighting and single‑sided directional lighting. The height of the lamp heads is adjustable via a 3‑section telescopic rod, with a maximum lifting height of 2.2 meters, adapting to lighting requirements of various occasions.

4. Built with a high‑capacity high‑energy lithium battery pack featuring a low self‑discharge rate. A full charge supports up to 5 hours of continuous operation with floodlight and spotlight on simultaneously. Built‑in overcharge, overdischarge and short‑circuit protection ensure safe and stable performance.

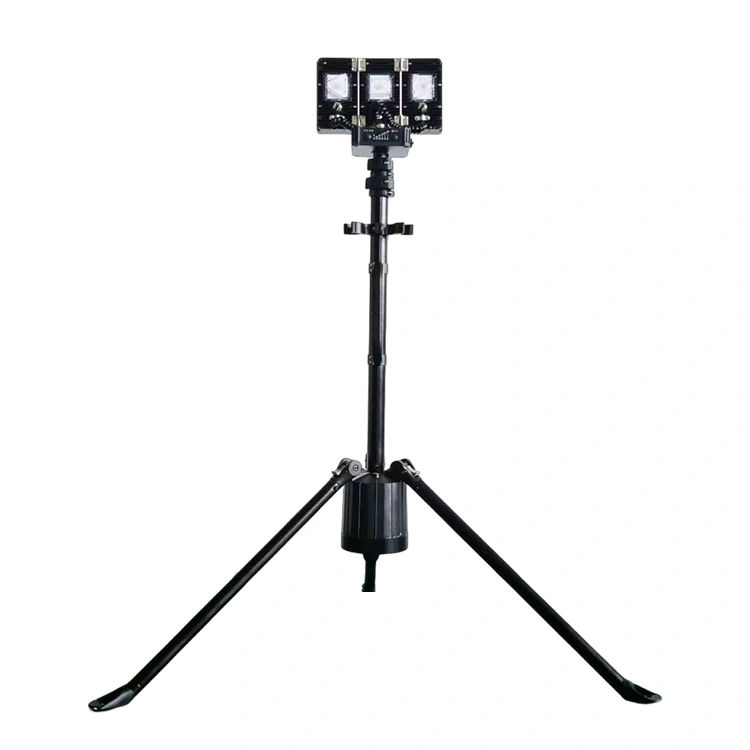

5. Directional arrow warning lights are installed on the back of the lamp heads, which can be turned on or off independently. At night under clear weather, the visible distance of the warning lights reaches over 1,500 meters.

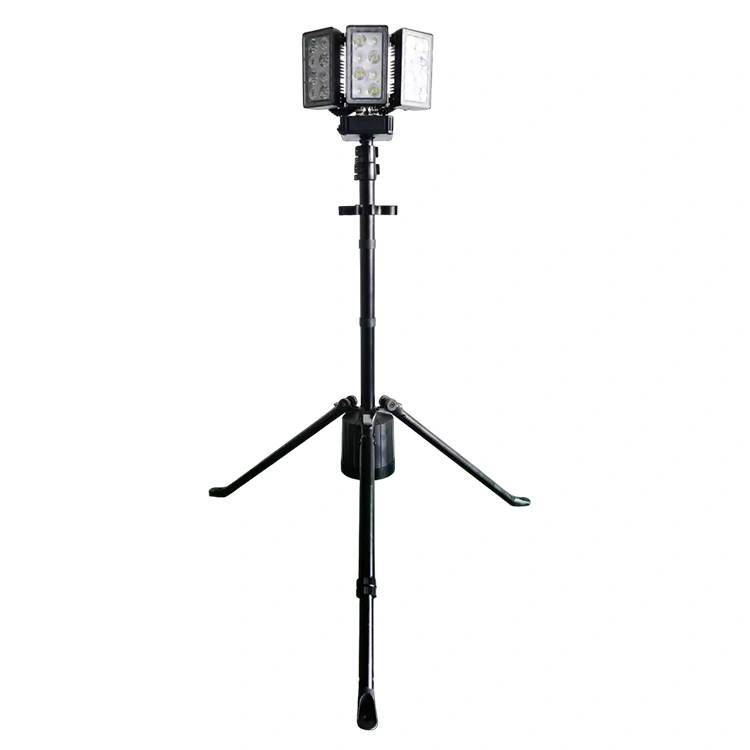

6. Equipped with triangular support legs, the luminaire delivers excellent stability. It is easy to operate and convenient to move, ideal for task scenarios requiring frequent relocation.

7. Multi‑mode lighting control: The physical buttons support brightness adjustment, warning light switching and 5‑level segmented power display. Bluetooth connection via mobile APP enables one‑key control of lights and warning lights, stepless dimming, real‑time battery level and charging status checking, with a remote control distance of over 50 meters, greatly improving application flexibility.

8. Compact and lightweight, it supports multiple carrying methods such as hand‑held and shoulder‑worn for easy transportation.

Why Choose Us？

This Explosion-Proof Panoramic Mobile Lighting System boasts a wide range of applicable scenarios and accurately meets mobile lighting needs across multiple fields. It delivers clear illumination for public security work such as mobile checkpoint duty and night inspection by patrol vehicles, helping law enforcement personnel carry out inspection efficiently. It also serves as core lighting equipment for emergency and fire rescue, fully lighting up operation areas at accident sites and natural disaster rescue scenes, supporting rapid hazard disposal and life safety protection for rescuers.

Meanwhile, it perfectly satisfies lighting demands for traffic accident investigation, on-site rescue and temporary expressway checkpoints, ensuring accurate operation under complex road conditions. In addition, it is widely used in emergency rescue tasks for petroleum, chemical, railway, power grid and other industries, as well as large-area mobile lighting in explosive-proof areas and construction sites. With stable and reliable performance, it meets long-lasting lighting requirements in various high-risk and complex environments, comprehensively ensuring efficient and safe on-site operations.
