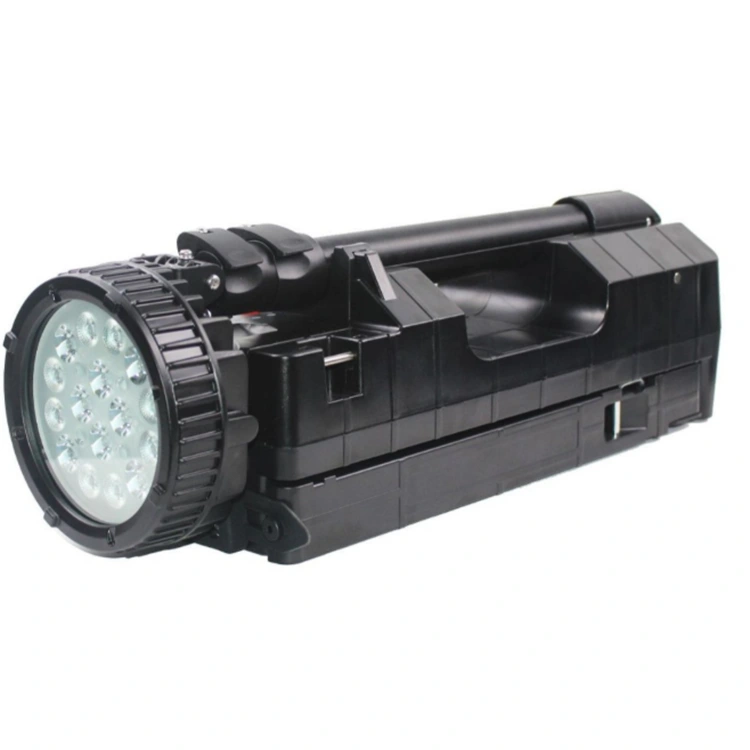

Portable Explosion-Proof Searchlight

The Portable Explosion-Proof Searchlight is designed to meet the dual needs of flood control and high-risk operations. Utilizing a high-quality LED light source and a professional explosion-proof structure, this work light boasts exceptional safety and stable operation in complex and hazardous environments such as flammable, explosive, humid, and dusty conditions.

Leveraging the company's extensive experience in flood control equipment and comprehensive after-sales service, this LED explosion-proof portable work light is not only an essential piece of equipment for flood control and emergency rescue, but also an ideal lighting solution for daily maintenance and emergency response in special scenarios such as chemical plants, mines, and ports, comprehensively ensuring lighting safety for outdoor and high-risk operations.

Product Features

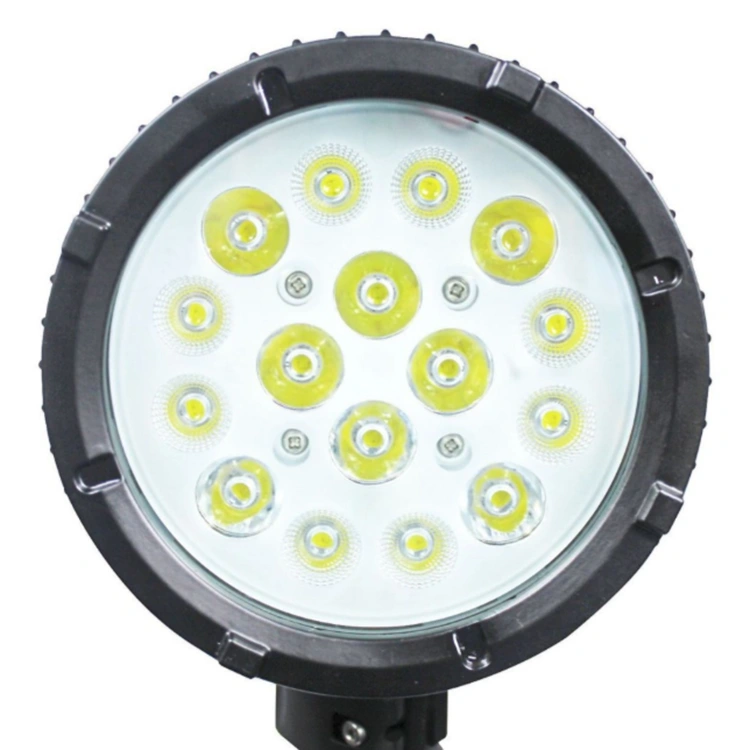

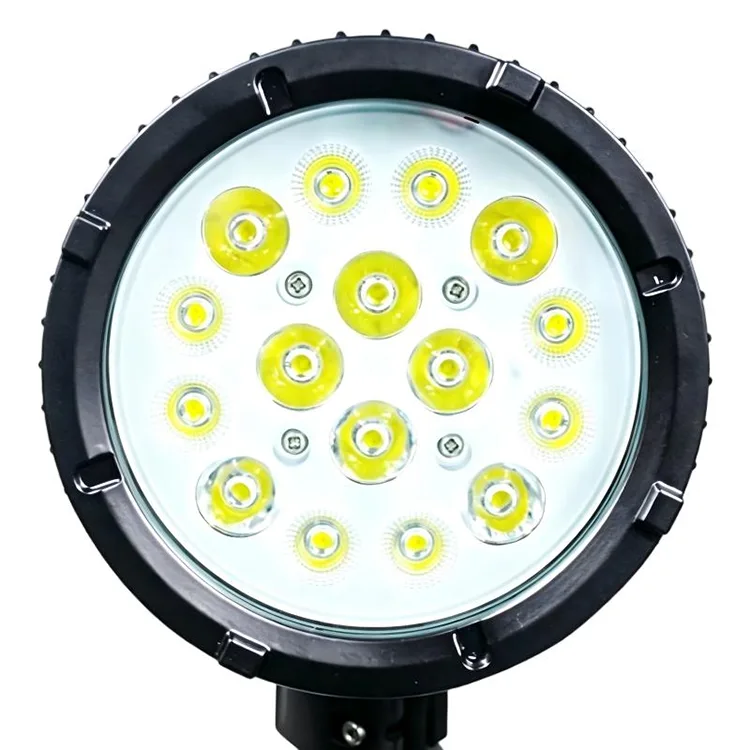

●High brightness: Luminous flux exceeds 4000lm; central illuminance at 6 meters (spotlight mode) is over 1000lx; average illuminance at 3 meters (floodlight mode) is above 200lx.

●Lightweight design: The total weight is only 6kg, supporting hand-held and shoulder-back carrying for easy portability.

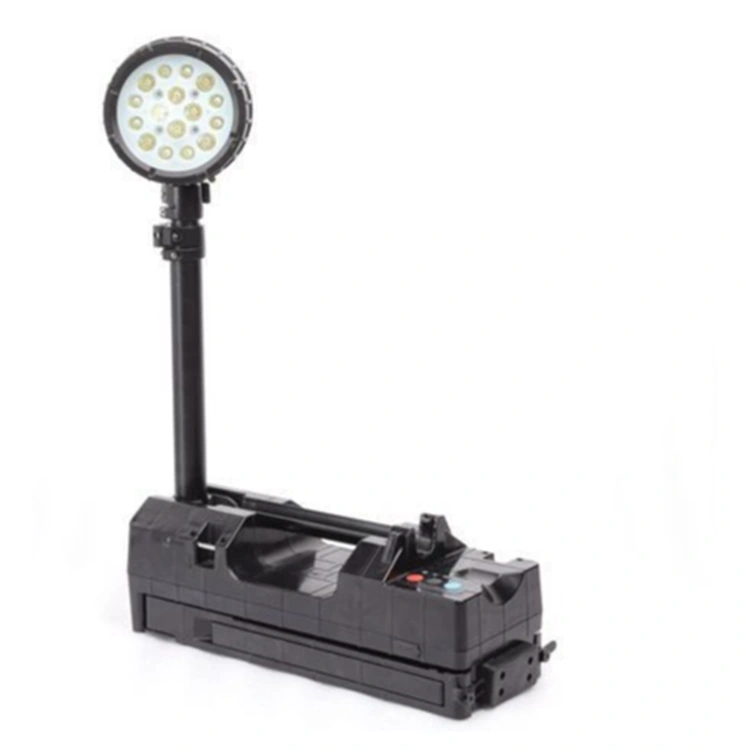

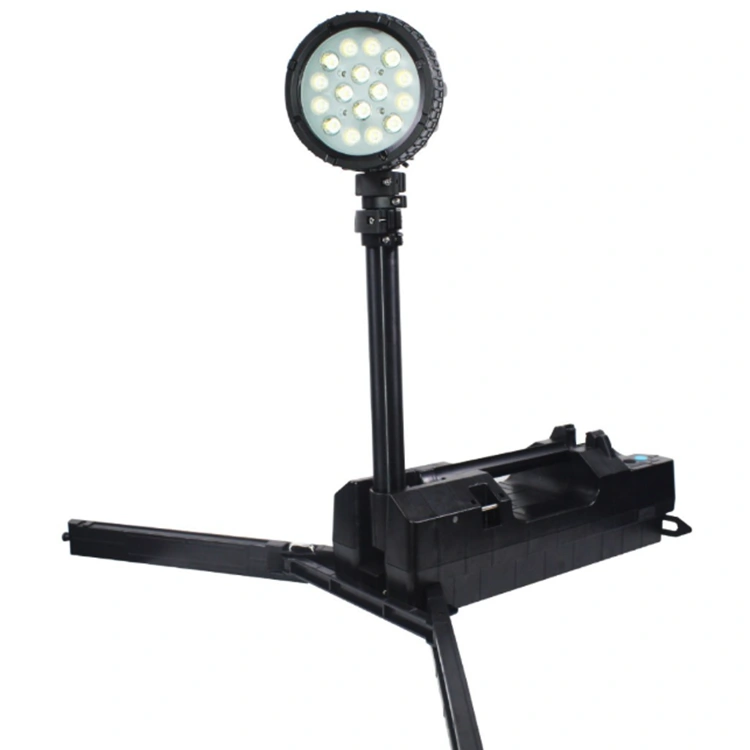

●Multi-functional use: The lifting rod can be extended up to 1.2 meters for fixed lighting, or folded for use as a searchlight.

●Long endurance: Continuous lighting time exceeds 10 hours in high-brightness mode and 16 hours in standard mode, fully meeting the demands of long-time night operation.

●High-energy memory-free lithium battery: Supports random charging and discharging, featuring environmental friendliness, large capacity, high safety and long service life.

●Multi-level lighting modes: Equipped with spotlight, floodlight, ultra-bright lighting, as well as red and yellow warning lights to adapt to lighting requirements of different scenarios.

●Premium explosion-proof performance: Certified with explosion-proof grade Ex de ib mb IIC T6 Gb, ensuring safe operation in various flammable and explosive locations.

●Superior protection grade: Overall IP66 protection rating, resistant to 1-meter drop impact, and capable of stable operation in rainy, snowy and harsh weather conditions.

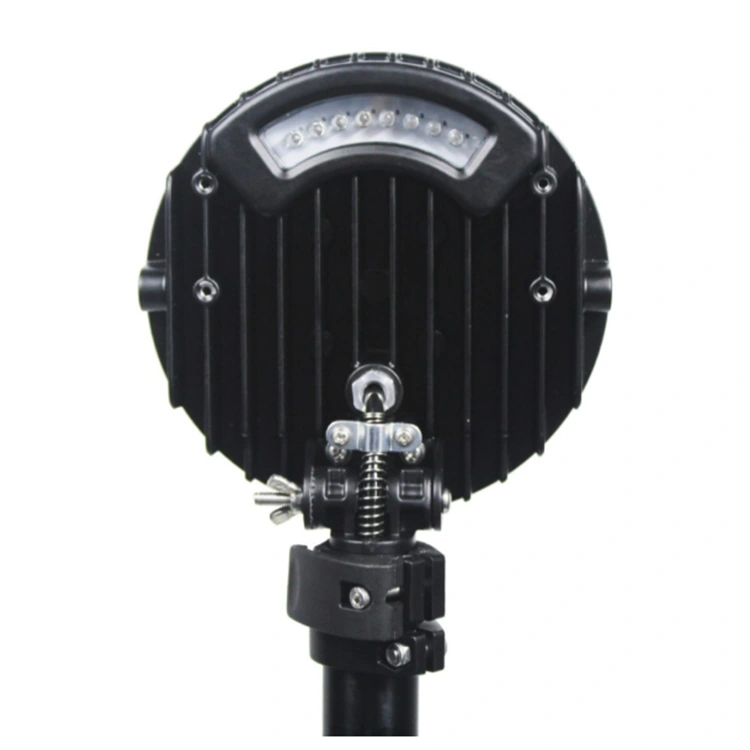

●Flexible adjustment: The lamp head supports 360° horizontal rotation and 135° vertical angle adjustment, allowing free adjustment of the lighting direction.

Technical Parameters

Rated Capacity: 10Ah

Rated Voltage: DC 22.2V

LED Power: 50W

Average Service Life: 100,000h

Color Temperature: 5000–6000K

Central Illuminance (at 6m): ＞1000lx

Continuous Discharge Time: High light ≥10h / Working light ≥16h

Spot & Flood Light Simultaneous On: High light ≥4h / Working light 8h

Charging Time: ≤6h

Signal Light Color: Red / Blue

Explosion-proof Mark: Ex db eb ib mb IIC T6 Gb; Ex ib tb IC T80°C Db

Overall Dimensions:

Retracted: 500×150×180mm

Extended: 500×150×1280mm

Ingress Protection: IP66

Product Weight: 6kg

Applicable Scope

This Portable Explosion-Proof Searchlight is mainly suitable for emergency lighting in accident rescue, small-scale construction, maintenance and emergency operations across multiple key industries and high-risk scenarios.

Widely used in:

Flood control and emergency rescue

Railway accident repair and tunnel emergencies

Power grid maintenance and substation repair

Firefighting and police night operations

Oilfield, chemical plant and gas station safety work

Industrial maintenance in hazardous areas

Provides reliable lighting support for high-risk and low-visibility environments.
